Automatic Continuous Garlic Processing Line

Product Type :
Garlic Processing Line
Output :
Power Supply :
380V / 50Hz/Can be customized
Power Input :
Applicable Materials :
Garlic, Fruits And Vegetables
Application Place :
Restaurant, Food Processing Factory, Supermarket etc
Customization :
Can be customized
Warranty :
1 Years
Core Advantages :
Automatic/ Continuous/ Large-Capacity /Support Customization
Garlic Powder Processing Line 5
Product introduction

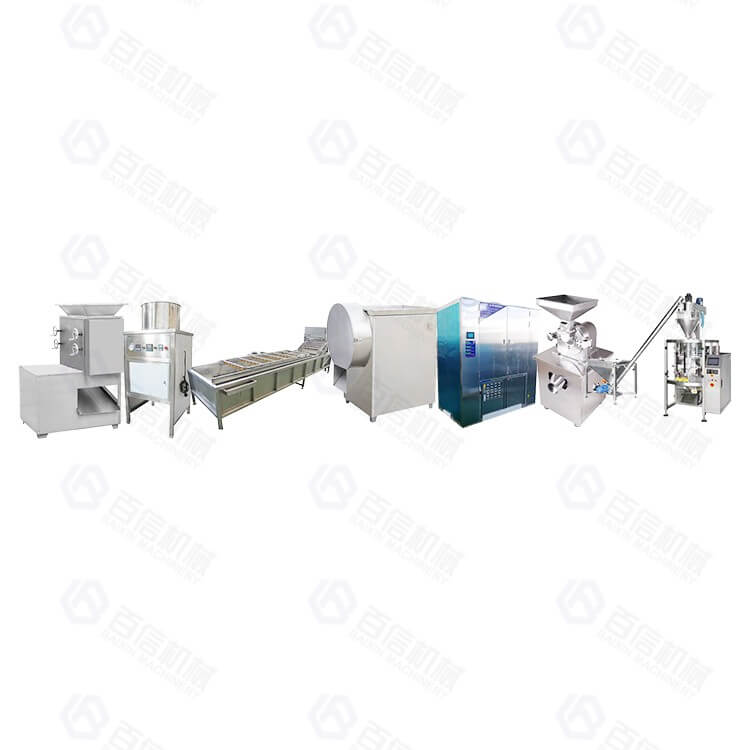

Introduction of  the garlic production line

The garlic powder processing line has continuous automatic production, fast processing speed, high output, and good quality. It includes garlic clove separator, garlic peeling machine, garlic washing machine, garlic slicer, air dryer, garlic dryer, garlic grinder, garlic powder packaging machine, and other equipment, which can be used for deep processing of garlic dehydration slices, garlic powder, etc. . The production line adopts advanced technology, high garlic output, and direct sales at factory prices. This is the best choice for the garlic powder business and the most ideal equipment for garlic processing at present.

Product components

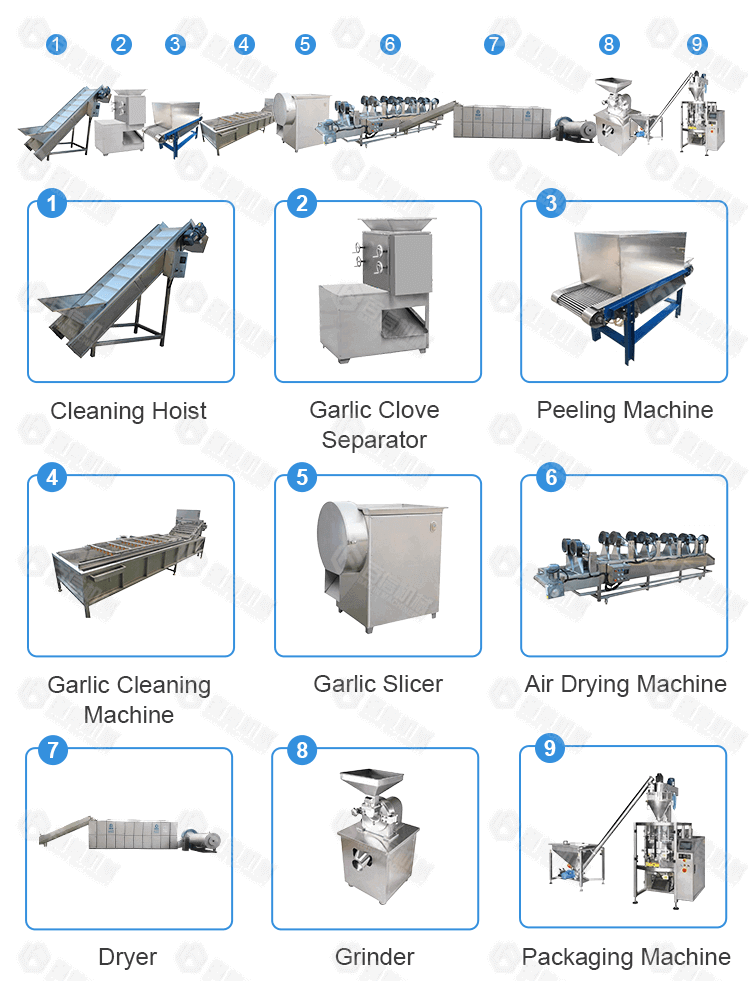

Components of garlic processing line

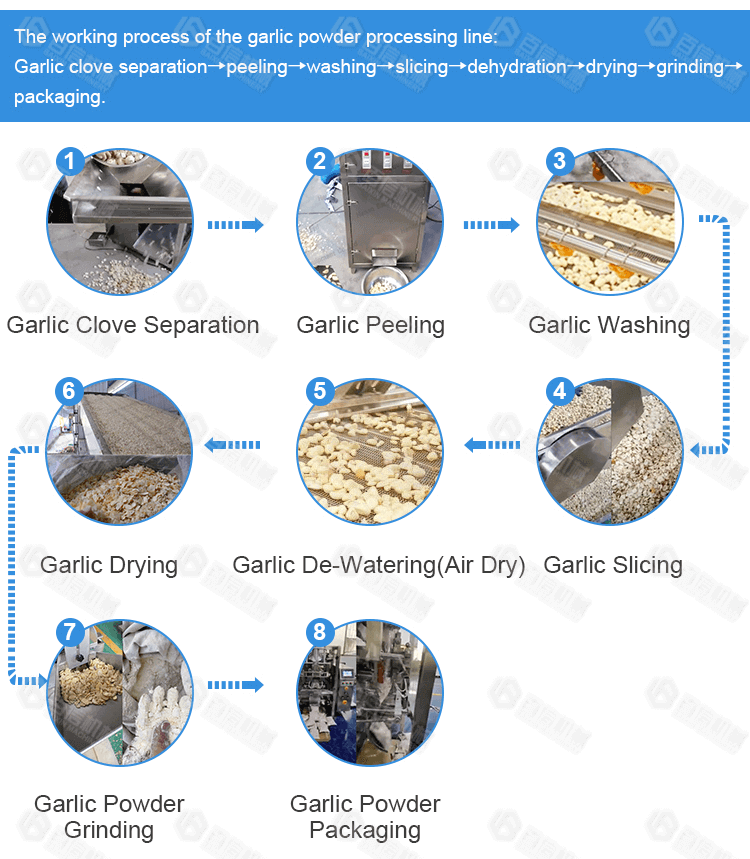

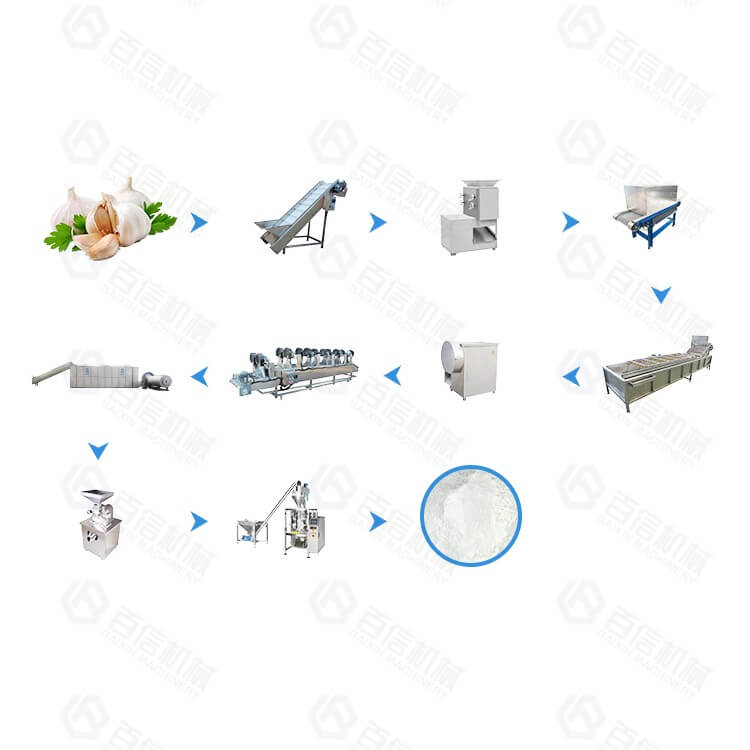

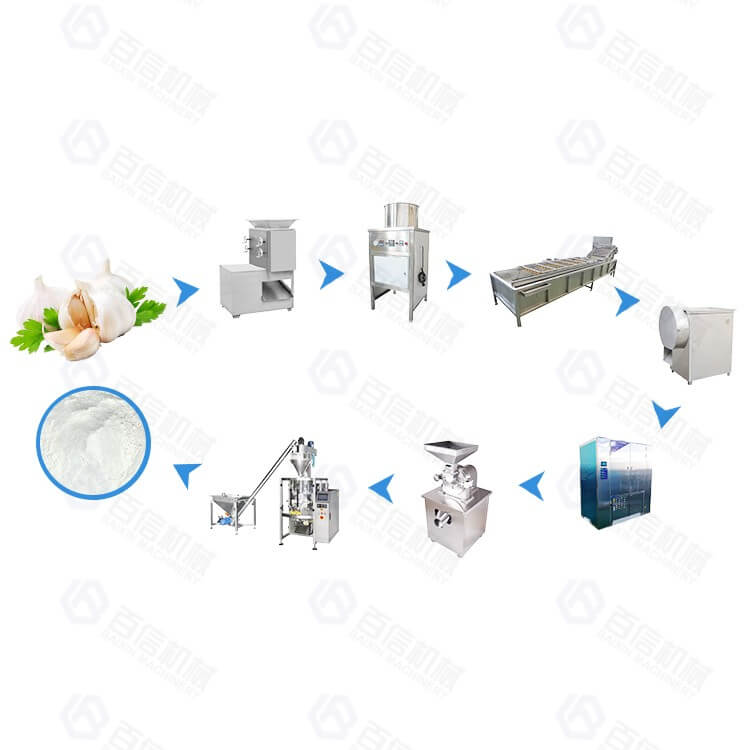

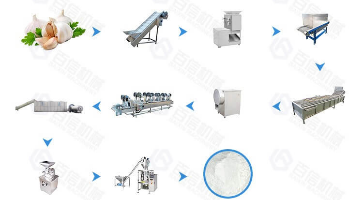

Garlic processing line flow chart

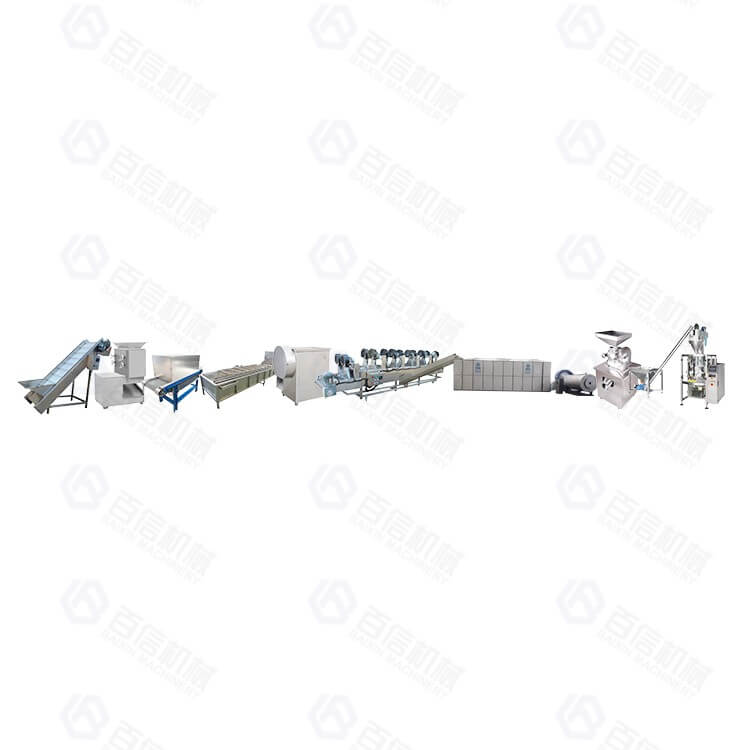

A complete large-scale garlic powder processing plant mainly includes: splitting machine, peeling machine, washing machine, slicing machine, dehydrating machine, dryer, powder grinding equipment, packaging machine, etc., each equipment interacts with each other. Connected by a hoist.

Garlic clove separator: It is mainly used to separate garlic cloves and garlic stalks and partially peel the garlic cloves. Garlic bulbs can be used in any size, with the advantages of no damage to garlic cloves and high peeling rate. The equipment is easy to operate, has high production efficiency, easy cleaning, and low failure rate.

Garlic peeling machine: adopts electric and pneumatic automatic control to make garlic automatically feed, peel, and separate the garlic from the peel. There is no damage to garlic, and the peeling rate is high.

Garlic washing and rinsing machine: Wash off impurities before slicing, rinse off the garlic film, remove glue and debris to prevent yellowish-brown during drying. The whole is made of stainless steel. Through the effect of water circulation, the garlic cloves will be removed during the initial cleaning of the garlic. After the rinsing, the garlic cloves will follow the conveying system and enter the next process.

Garlic slicing machine: Cut the garlic cloves into even slices. The thickness of the slices should be 1.5-2mm. The garlic slices processed by this high-efficiency garlic slicer have standard product specifications with uniform thickness and uniform size, which has a good effect on the later drying process. This uniform garlic slice can keep the time and effect of the drying process under the same conditions, so the overall drying effect will also be very high, which meets the processing standards of large-scale enterprises in the drying of garlic slices.

Air dryer (Dehydrator): Garlic slices can effectively remove water and shorten the drying time before drying after washing. The main purpose is to pre-dehydrate the garlic slices before drying. Because the garlic slicer uses the principle of water washing and slicing, the moisture content of the garlic slices after cutting is super high, plus the water contained in the garlic slices. If you don’t go through the preliminary dehydration treatment and directly send it to the drying host, it will cause serious cooking conditions, which will have a huge impact on the quality of the dried garlic slices. Therefore, the garlic slice dehydration processing equipment is used for preliminary analysis. Dehydration processing is very necessary.

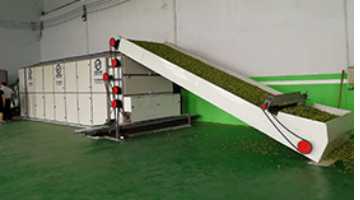

Multi-layer belt garlic slice dryer: The dryer is the key equipment, which determines the effect and quality of garlic slices after processing. Using our mesh belt type garlic slice dryer, with an intelligent control system, can make garlic slices The drying is always maintained in a reasonable drying environment to ensure the effect of the finished product. The use of this garlic slice dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and adjustable drying time. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Garlic powder making machine: Grind dried garlic slices to a fineness of 10-120 mesh. The garlic grinder is air-cooled or water-cooled and can work continuously for a long time.

Garlic powder packaging machine: Generally speaking, the garlic powder business requires automatic garlic powder packaging equipment. The garlic powder packaging machine has a PLC control system, which is intelligent and controllable and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.

Advantages of garlic processing line

Technical parameters
50-100kg/h small output garlic processing line
Number Name Power Size Output
1 Garlic Clove Separator 0.74KW 690*710*1050mm 200kg/h
2 Garlic Peeling Machine 0.2KW 640x660x1370mm 150kg/h
3 Garlic Slicer 0.75KW 720*540*880mm 300kg/h
4 Dryer 3KW 2100*930*2100mm 50-100kg/h
5 Grinder 5.5KW 750*600*1260mm 30-150kg/h
6 Packing Machine 1.6KW 700*750*1650mm 30-60 packs/min
The garlic powder processing line can be equipped according to the user’s requirement and the production demands.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site to guide the installation, adjustment, and operation training. All of our engineers have passports.
What about the Warranty?
We are committed to every food dryer machine before delivery through professional commissioning debugging to ensure that the machine is best for you. And solemnly promise you can machine warranty for one year, Long-term to provide an after-sale spare parts service cost price.
What is the delivery time?
For the regular equipment, the delivery will be 10~25 days. For customized drying production line will be further negotiated with us.
Related recommended products
Small & Medium Output Garlic Powder Processing Line
Small & Medium Output Garlic Powder Processing Line
Product Type :Garlic Powder Processing Line
Output :50-100kg/h
Power Supply :380V / 50Hz/Can be customized
Power Input :11.79KW
Applicable Materials :Garlic, Fruits And Vegetables
Application Place :Restaurant, Food Processing Factory, Supermarket etc
View Equipment

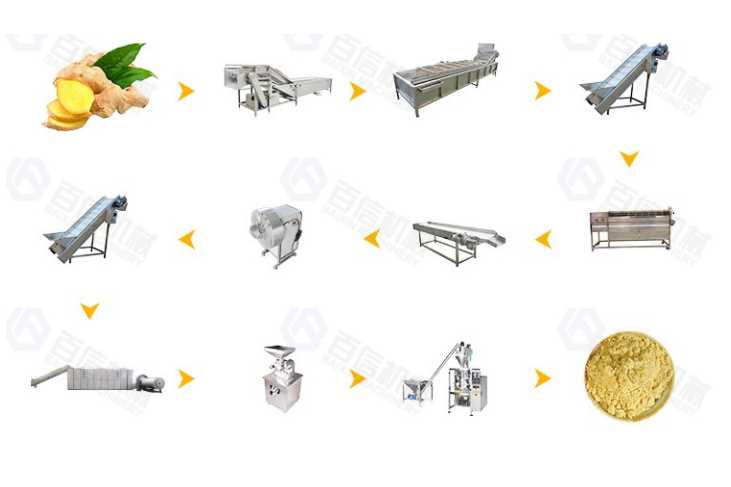

Large Output Ginger Powder Processing Line
Large Output Ginger Powder Processing Line
Product Type :Ginger Powder Processing Line
Output :500-800kg/h
Power Supply :380V / 50Hz/Can be customized
Power Input :47.68KW
Applicable Materials :Ginger, Fruits And Vegetables
Application Place :Restaurant, Food Processing Factory, Supermarket etc
View Equipment

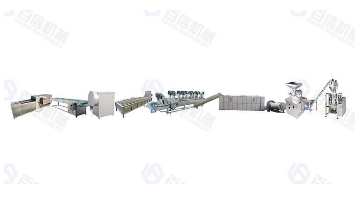

Automatic Continuous Onion Processing Line
