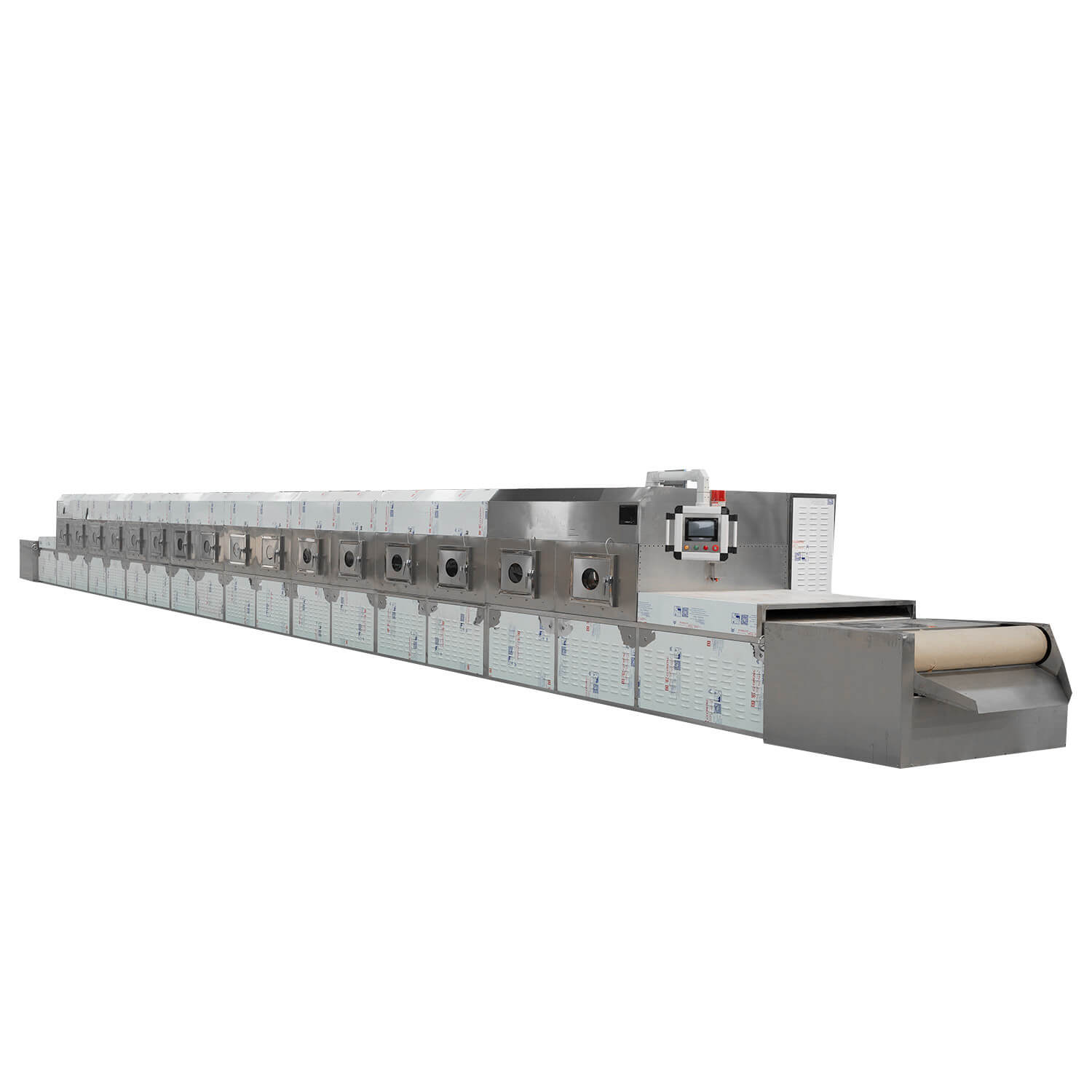

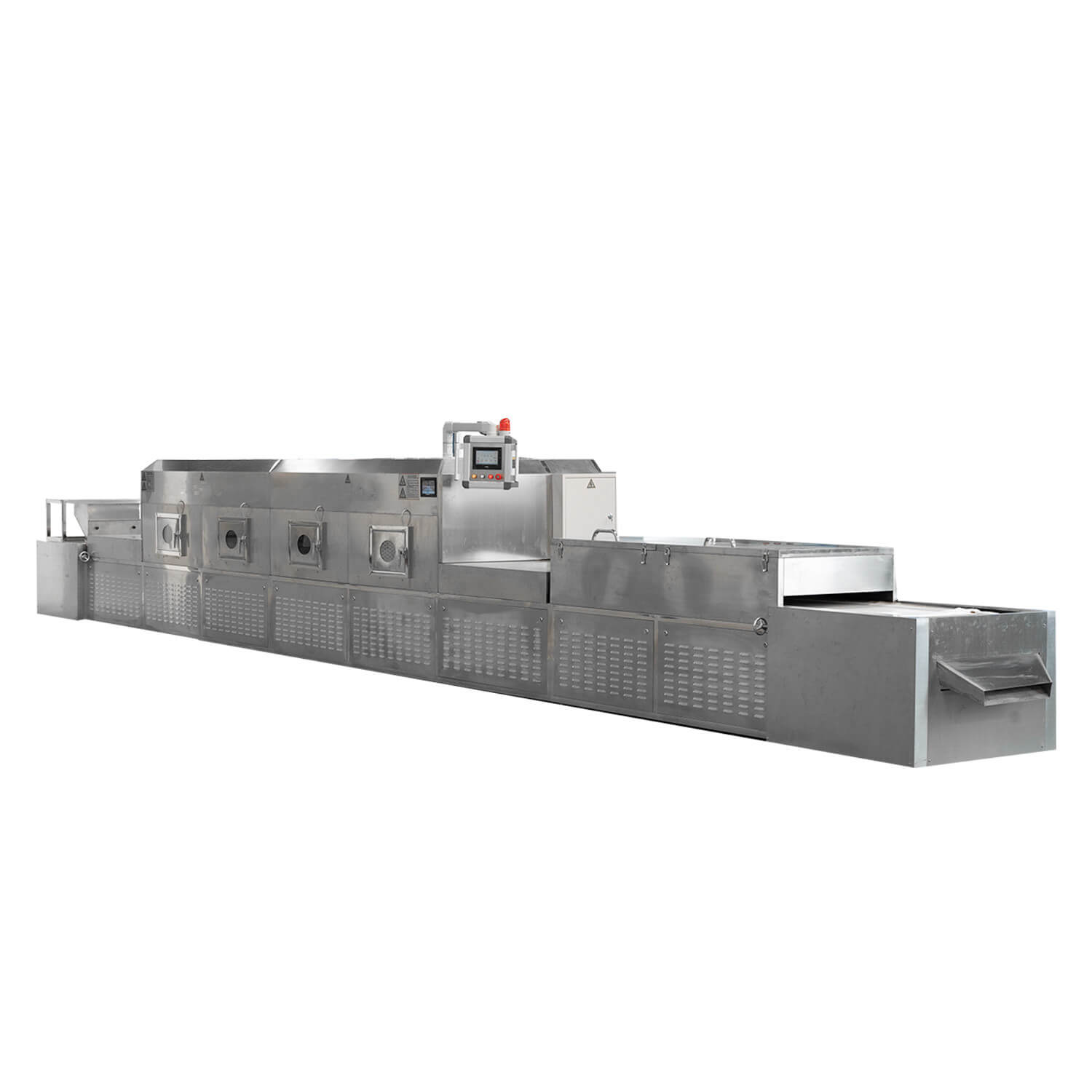

Microwave dryer

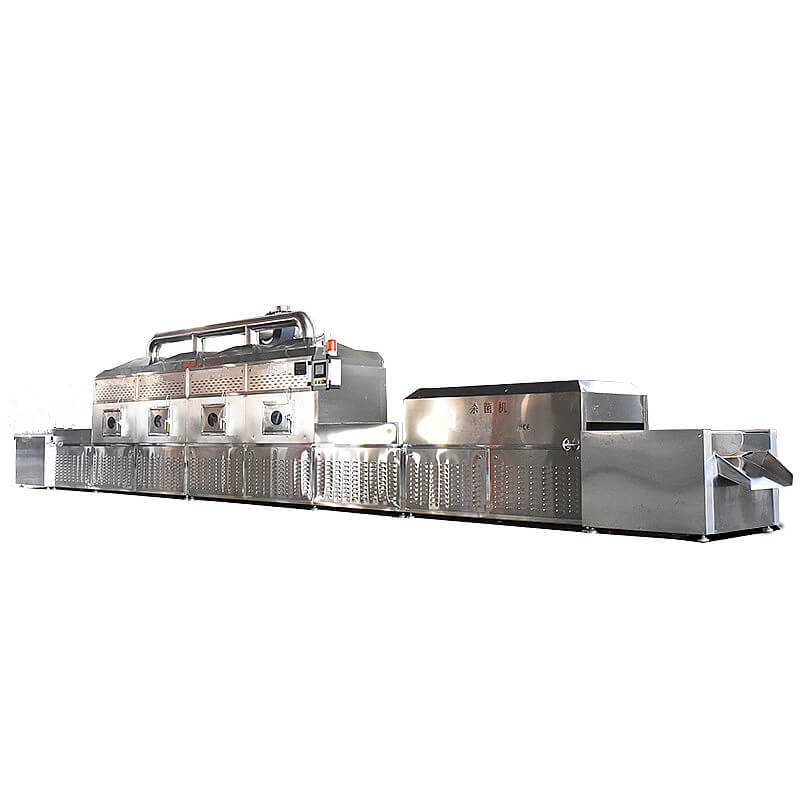

Microwave sterilization

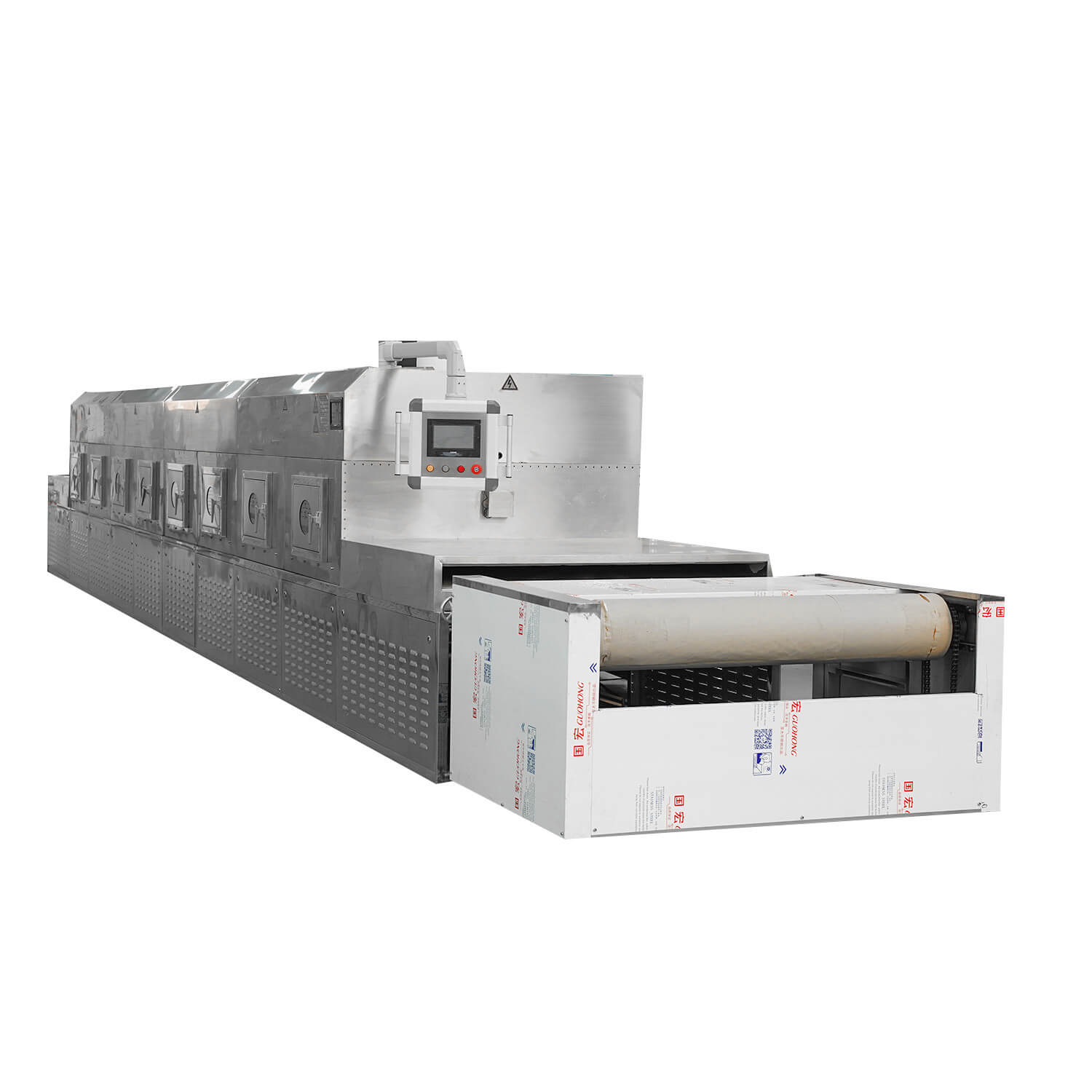

Microwave dehydrator
Microwave drying machine

Microwave Drying Sterilization Equipment

Product Type :
Microwave Drying Equipment
Output :
Drying Time :
Power Supply :
Power Input :
Heat Source :
Customization :
Can be customized
Applicable :
Vegetables/fruits/herbs/agriculture etc
Core Advantages :
Fast heating speed and uniform/energy saving/sterilizing
Microwave sterilization and drying process

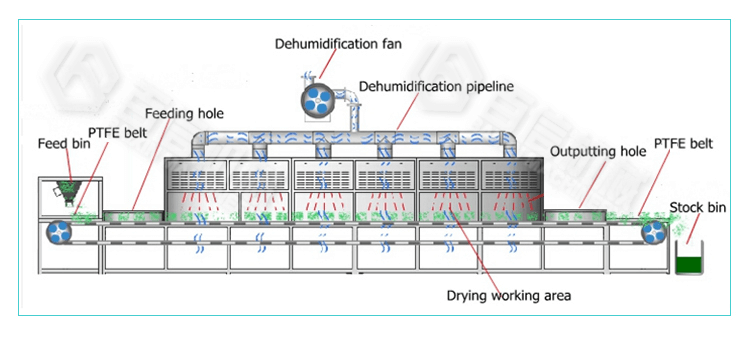

How to microwave sterilization and drying

Place the materials on the conveyor belt of the microwave dryer. The materials are dispersed on the conveyor belt through a homogenizing device on the conveyor belt. During the operation of the equipment, the microwave generator generates microwaves. The materials enter the heating chamber through the conveyor belt. At this time, the water and bacteria in the materials evaporate under the action of microwave energy to achieve the purpose of sterilization and drying. The drying time is 5-10 minutes. The dried materials are discharged from the discharge port.



Microwave sterilization and drying introduction

Working principle of microwave  sterilization and drying

Microwaves are electromagnetic waves at a frequency of 300 MHz to 300 GHz. The material in the heating medium in the molecules of water is a polar molecule. It is the rapidly changing under high-frequency magnetic field, its polarity orientation will be with the change of external electric field changes, resulting in molecular motion and friction between the effect, this field of the microwave field can be transformed into thermal energy within the medium, the temperature of the material increased, heating and puffing a series of physical and chemical processes, to achieve the purpose of microwave heating and drying.

During the equipment is working the microwave generator produces the microwave. The materials enter into the heating chamber by conveyor. At this time, moisture and bacteria inside the material evaporate under the action of microwave energy to achieve unfreeze sterilization ripening fixing drying purpose.

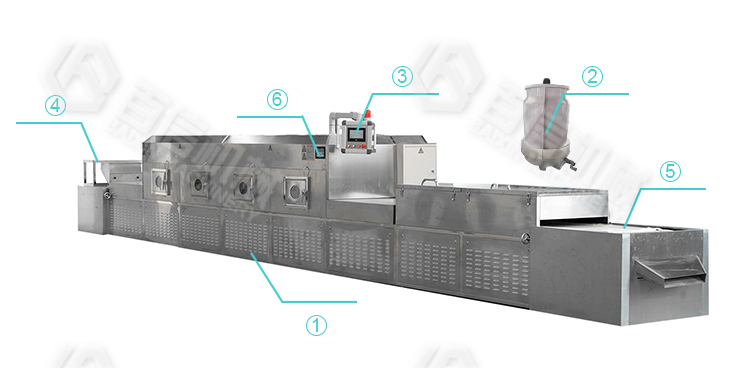

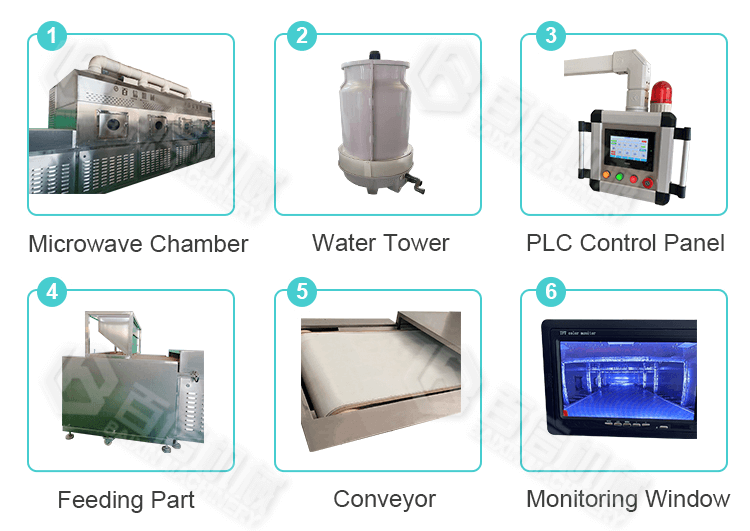

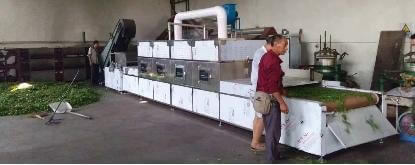

Detail display of microwave sterilization and drying

Advantages of microwave sterilization and drying

1:Fast processing efficiency:
It takes about a few minutes to complete the process from feeding to discharging. The processing efficiency is fast and the effect is good。
2:Uniform drying effect。
The microwave dryer can make all parts of the material have the same effect.
3:Drying and sterilizing simultaneously, tunnel type design, cover small area, continuous production,
4:Clean and sanitary: it will not pollute the material, nor change the color, fragrance, and nutritional content of the material.

Technical parameters of microwave sterilization and drying
Model Size(mm) Power Dehydration rate temperature control
BX-10 6300*665*1800 10KW 10kg/h 0~400℃
BX-15 6300*950*1800 15KW 15kg/h 0~400℃
BX-30 8500*1500*1800 30KW 30kg/h 0~400℃
BX-50 10500*2000*1800 50KW 50kg/h 0~400℃
BX-60 10500*2000*1800 60KW 60kg/h 0~400℃
BX-80 12500*2000*1800 80KW 80kg/h 0~400℃
BX-100 14500*2000*1800 100KW 100kg/h 0~400℃
BX-120 16500*2000*1800 120KW 120kg/h 0~400℃
BX-150 20000*2000*1800 150KW 150kg/h 0~400℃
BX-160 20000*2000*1800 160KW 160kg/h 0~400℃
BX-180 22000*2000*1800 180KW 180kg/h 0~400℃
BX-200 23400*2000*1800 200KW 200kg/h 0~400℃
Can be customized according to user requirements.
Application of microwave sterilization and drying

Pasta classes:non-fried fast noodles, fine dried noodles, stewed noodles
Dehydrated Vegetables:all kinds of vegetables
Meat :Beef ,pork ,chicken ,fish ,duck
Grain and nuts:Filbert ,Chinese chestnut ,peanut ,nut,almond ,pine nut ,pistachio nut ,melon seeds,grain
Worm: black soldier fly larva

Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!

Now we plan to make the drying project, what should we do?
Firstly, we need to know the original moisture content of the material and after drying the final moisture content that you want to achieve. Secondly, please tell us what is your required capacity per hour or per day? Thirdly, what kind of fuel do you want to use? Coal, gas, electrical, or others. We can according to your answer recommend you the accurate drying model and design the matching heating system for your project.
What kind of drying machine is suitable for me?
We offer three types of food dryer machines: multi-layer belt drying machine, heat pump drying machine, and microwave food drying machine. Generally speaking, the multi-layer belt drying machine is more suitable for large-scale food drying, heat pump drying machine tends to be easier to operate and frequently used in the small and medium drying process, and The microwave dryer has higher drying efficiency and sterilization function. Based on your production situation, you can choose the suitable one.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site to guide the installation, adjustment, and operation training. All of our engineers have passports.
