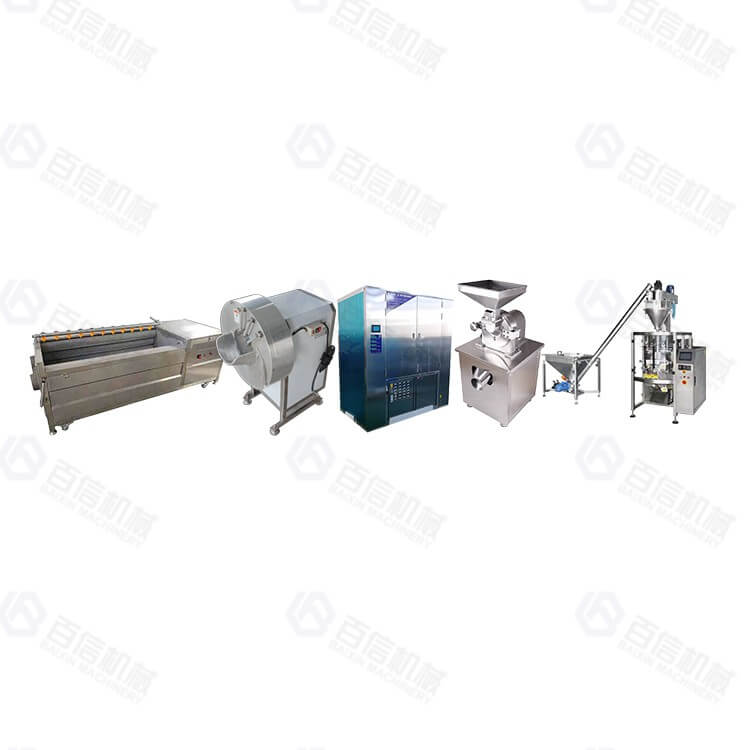

ginger powder processing line 3
ginger powder processing line 1
ginger powder processing line
ginger powder processing line 2

Support Customization Ginger Processing Line

Product Type :
Ginger Processing Line
Output :
50-100kg/h
Power Supply :
380V / 50Hz/Can be customized
Power Input :
12KW
Applicable Materials :
Ginger, Fruits And Vegetables
Application Place :
Restaurant, Food Processing Factory, Supermarket etc
Customization :
Can be customized
Warranty :
1 Years
Core Advantages :
Flexible Configuration/ Easy Operation/ Support Customization
Share:
Large output ginger powder production line
01
Product introduction

Introduction of  the ginger production line

The ginger powder processing line uses ginger as raw material and processes ginger into ginger powder through processing techniques such as cleaning, peeling, slicing, drying, and grinding. Meet the culinary needs of different households, restaurants, and food processing plants.

Processing ginger into ginger powder can increase the added value of ginger in the ginger planting industry, and reduce the ginger loss and storage and transportation costs caused by ginger price fluctuations. This is the best choice for the ginger powder business!

02
Product components

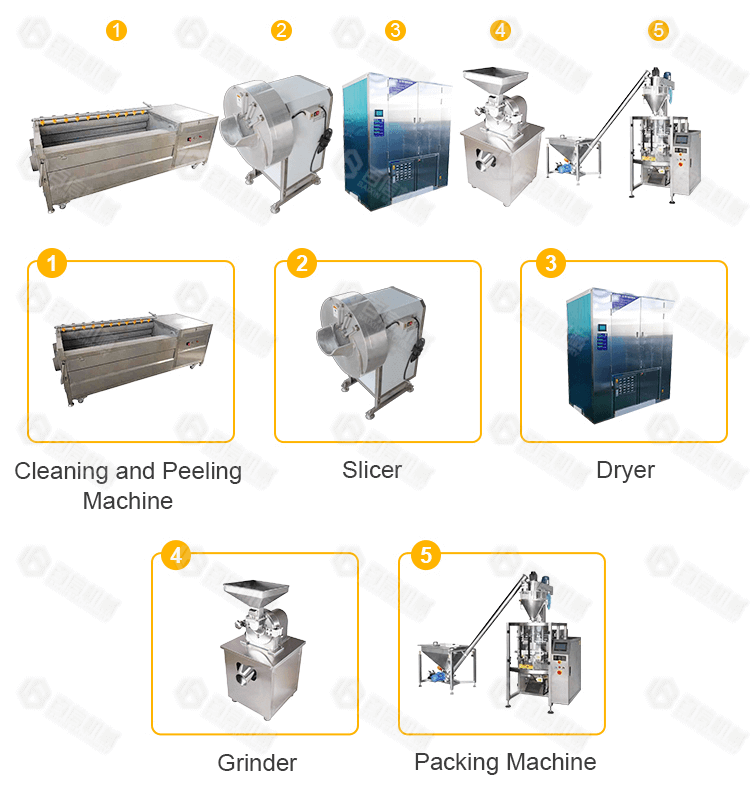

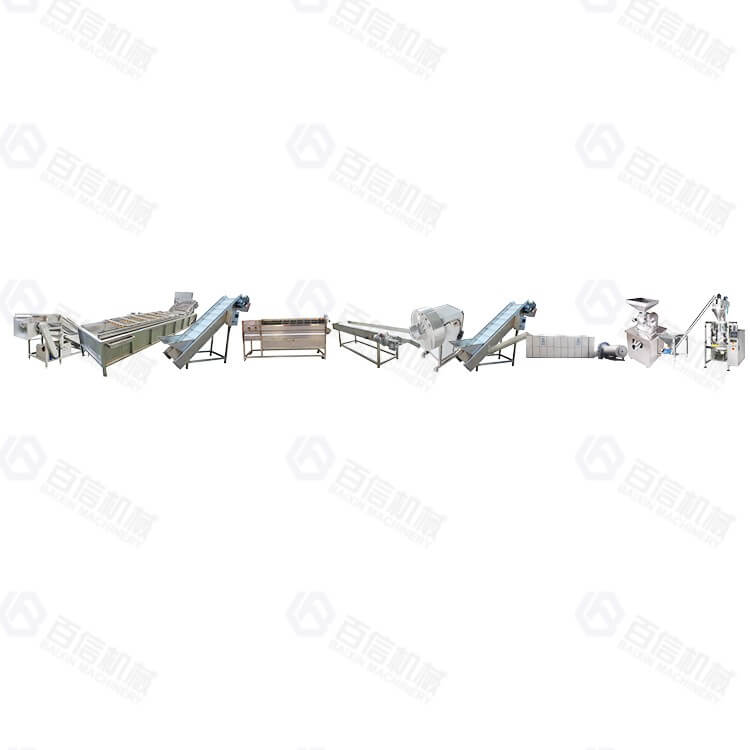

Components of the ginger processing line



03

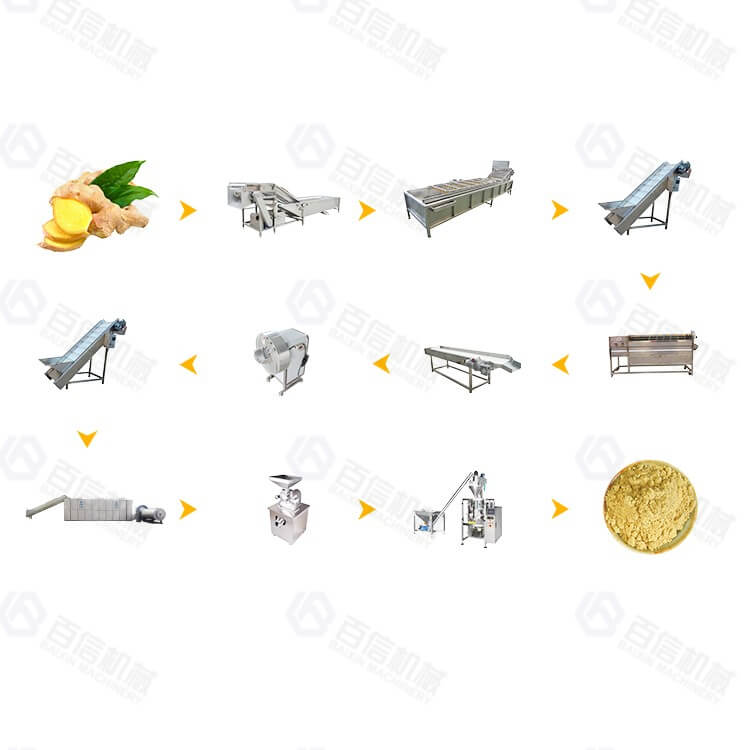

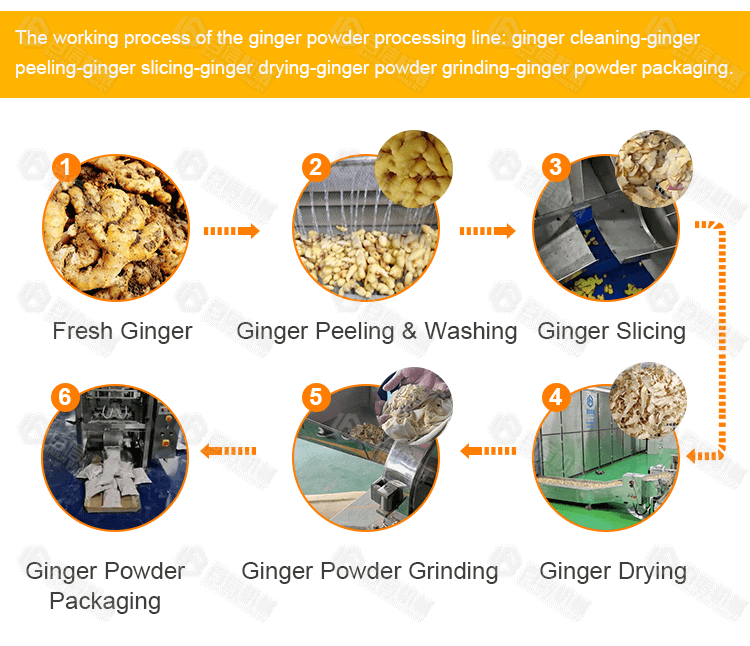

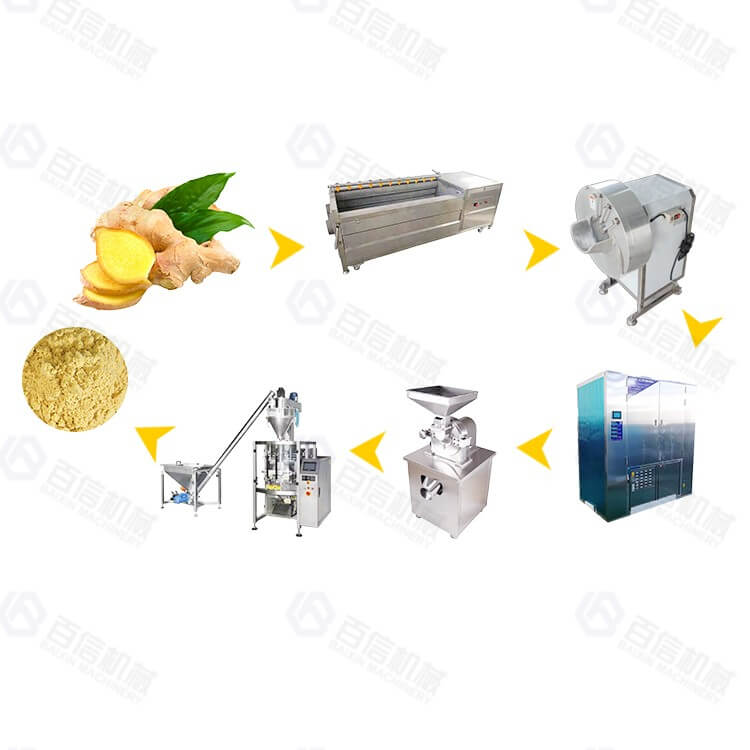

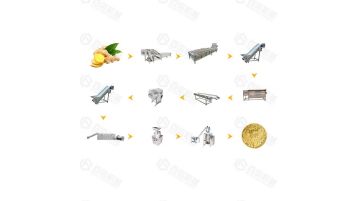

Ginger processing line flow chart

Ginger cleaning machine: It is used to clean the dirt, dust, and other impurities attached to the surface of ginger root. The ginger is rolled, washed, and transported under the action of high-pressure water flow and powerful air bubbles, and then sent to the next process.

Ginger peeler: for cleaning and removing the epidermis. The specially designed screw feeding structure is adopted to realize fully automatic work.

Ginger slicer: The thickness of ginger slices is uniform, and the slice thickness can be adjusted as needed.

Ginger air dryer: effectively remove the moisture on the surface of ginger slices after cleaning, greatly shorten the drying cycle, suitable for assembly line operation.

Ginger slice dryer: adopts multi-layer moving stainless steel mesh belt, automatic loading, and unloading, saving a lot of labor costs. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Ginger powder making machine: Grind dried ginger slices to a fineness of 10-120 mesh. The ginger grinder is air-cooled or water-cooled and can work continuously for a long time.

Ginger powder packaging machine: Generally speaking, the ginger powder business requires automatic ginger powder packaging equipment. The ginger powder packaging machine has a PLC control system, which is intelligent and controllable and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.

Advantages of the ginger processing line

04
Technical parameters
50-100kg/h small output ginger  processing line
Number Name Power Size Output
1 Cleaning and peeling machine 0.75KW 690*430*860mm 100kg/h
2 Slicer 1.1KW  690*560*880mm 300kg/h
3 Dryer 3KW 2100*930*2100mm 50-100kg/h
4 Grinder 5.5KW 750*600*1260mm 30-150kg/h
5 Packing Machine 1.6KW 700*750*1650mm 30-60 packs/min
The ginger powder processing line can be equipped according to the user’s requirement and the production demands.
05
FAQ
Q
Do you provide equipment operation training?
A
Yes. We can send professional engineers to the working site to guide the installation, adjustment, and operation training. All of our engineers have passports.
Q
What about the Warranty?
A
We are committed to every food dryer machine before delivery through professional commissioning debugging to ensure that the machine is best for you. And solemnly promise you can machine warranty for one year, Long-term to provide an after-sale spare parts service cost price.
Q
What is the delivery time?
A
For the regular equipment, the delivery will be 10~25 days. For customized drying production line will be further negotiated with us.
