Pepper Powder Processing Line

Product Type :
Pepper Powder Processing Line
Output :
200-300kg/h
Power Supply :
380V / 50Hz/Can be customized
Power Input :
20.3KW
Applicable Materials :
Chili,Pepper,Fruits And Vegetables
Application Place :
Restaurant, Food Processing Factory, Supermarket etc
Customization :
Can be customized
Warranty :
1 Years
Core Advantages :
Small & Medium-Capacity /Support Customization
Share:
chili production line banner
01
Product introduction

Introduction of  the pepper powder production line

The pepper powder processing line has continuous automatic production, fast processing speed, good quality, and a low-temperature drying method maintains the original flavor of pepper.
It includes pepper washing machine, pepper air dryer(optional), pepper punch(optional), pepper dryer, pepper color sorter, pepper tail remover, pepper grinder, pepper powder packaging machine, and other equipment. The pepper powder processing line can also be used for other spices such as garlic, ginger, onion, etc.
In addition, dry ground pepper is easier to store, avoiding economic losses caused by seasonal storage and mildew deterioration. The pepper powder processing line adopts advanced technology, high pepper output, and direct sales at factory prices. This is the best choice for the pepper business and the most ideal equipment for pepper powder processing at present.

02
Product components

Components of the pepper powder processing line



03

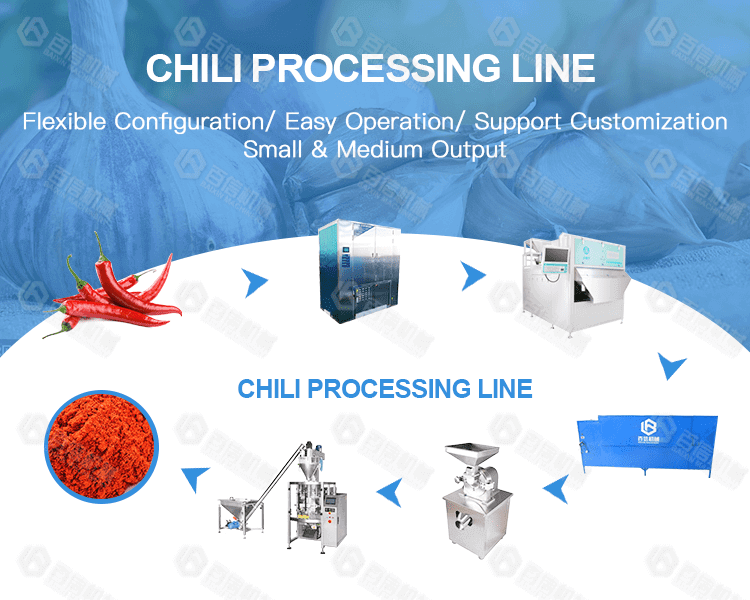

Pepper powder processing line flow chart

The working process of the pepper powder processing line: Chili cleaning-punching(optional)-drying-color sorting-tail removal-grinding-packaging.

The pepper powder production line includes pepper washing machine, pepper air dryer(optional), pepper punch(optional), pepper dryer, pepper color sorter, pepper tail remover, pepper grinder, pepper powder packaging machine. After processing, we can obtain pepper powder and pack and store this pepper powder to facilitate subsequent transportation and storage.

Pepper washing machine: Clean the pepper of dust and impurities, and remove debris. The whole is made of stainless steel. The pepper is cleaned by the action of water circulation. After cleaning, the pepper will go to the next process along with the conveyor system.

Air dryer (Dehydrator): It can effectively remove the surface moisture of pepper and shorten the drying time of pepper.

Pepper Punch: pepper drying has its own particularity. During the drying process of pepper, in the early stage of drying, the skin of the pepper quickly loses moisture, and the epidermis of the pepper becomes hard, which will cause the internal moisture to lose very slowly. If the peppers are punched before drying, the moisture inside the peppers will quickly lose, shortening the drying time of the peppers. pepper punching has no effect on the drying quality of pepper and is suitable for large pepper peppers.

Multi-layer belt pepper dryer: The dryer is the key equipment, which determines the effect and quality of pepper after processing. Using our mesh belt type pepper dryer, with an intelligent control system, can make pepper the drying is always maintained in a reasonable drying environment to ensure the effect of the finished product. The use of this pepper dryer has the advantages of large processing output, high degree of automation, controllable drying effect and quality, and adjustable drying time. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.

Pepper color sorter: Sort the dried peppers, remove damaged, shriveled, mildewed peppers, or remove stalks, leaves, stones and other sundries in the peppers. The machine can accurately sort out high-quality peppers according to the color difference of peppers, with fast sorting speed and high efficiency. The selected peppers are of high quality, and the net selection rate can reach more than 99%.

Pepper tail remover: The main function of the pepper tail removal machine is to remove the tail of the pepper, and the value of the processed pepper is doubled. The equipment has a fast processing speed, low pepper loss, and is suitable for different varieties of pepper.

Pepper powder making machine: Grind dried pepper to a fineness of 10-120 mesh. The pepper grinder is air-cooled or water-cooled and can work continuously for a long time.

Pepper powder packaging machine: Generally speaking, the pepper powder business requires automatic pepper powder packaging equipment. The pepper powder packaging machine has a PLC control system, which is intelligent and controllable and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.



Advantages of the pepper powder processing line

04
Technical parameters
200-300kg/h pepper powder processing line
Number Name Power Size Output
1 Pepper Dryer 3KW 2100*930*2100mm 200-300kg/h
2 Pepper Color Sorter 7.2KW 4464*1820*2577mm 500kg/h
3 Pepper Tail Remover 3KW 4200*800*1200mm 200-300kg/h
4 Pepper Grinder 5.5KW 750*600*1260mm 30-150kg/h
5 Pepper Powder Packaging Machine 1.6KW 700*750*1650mm 30-60 packs/min
The Pepper processing line can be equipped according to the user’s requirement and the production demands.
05
FAQ
Q
Do you provide equipment operation training?
A
Yes. We can send professional engineers to the working site to guide the installation, adjustment, and operation training. All of our engineers have passports.
Q
What about the Warranty?
A
We are committed to every food dryer machine before delivery through professional commissioning debugging to ensure that the machine is best for you. And solemnly promise you can machine warranty for one year, Long-term to provide an after-sale spare parts service cost price.
Q
What is the delivery time?
A
For the regular equipment, the delivery will be 10~25 days. For customized drying production line will be further negotiated with us.
