Product introduction

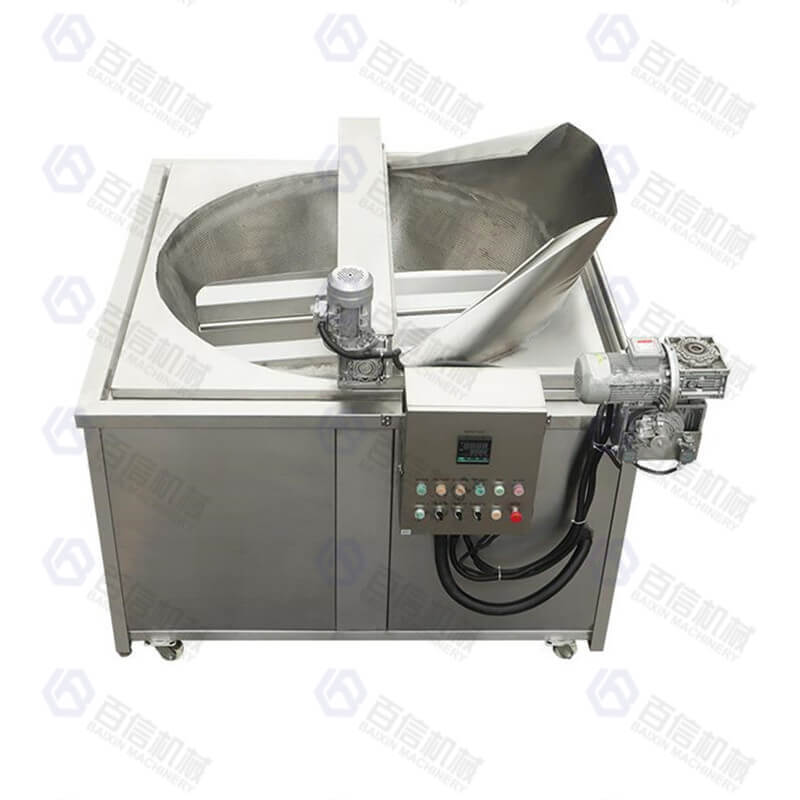

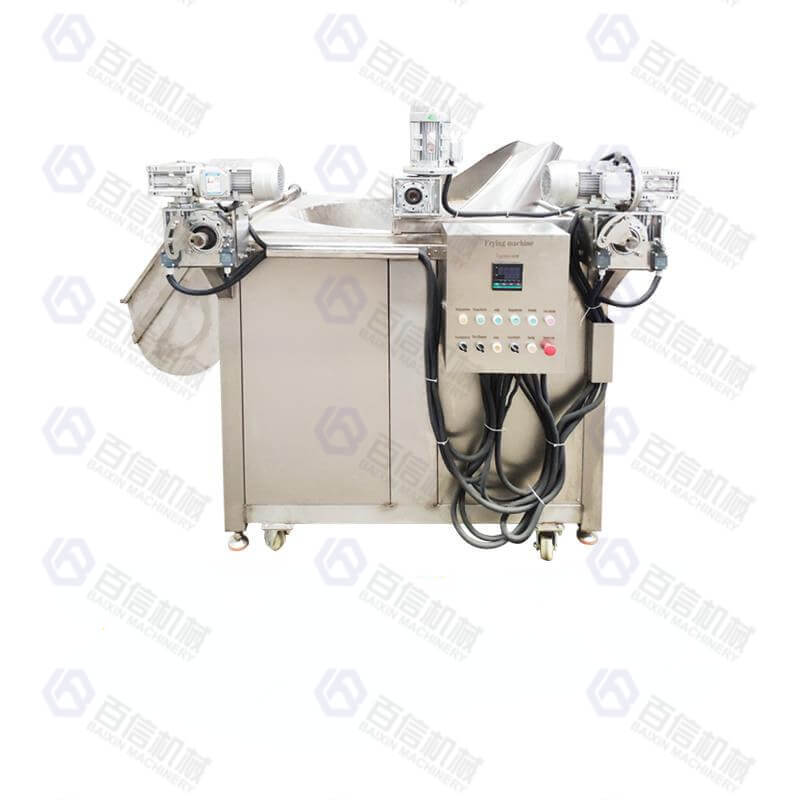

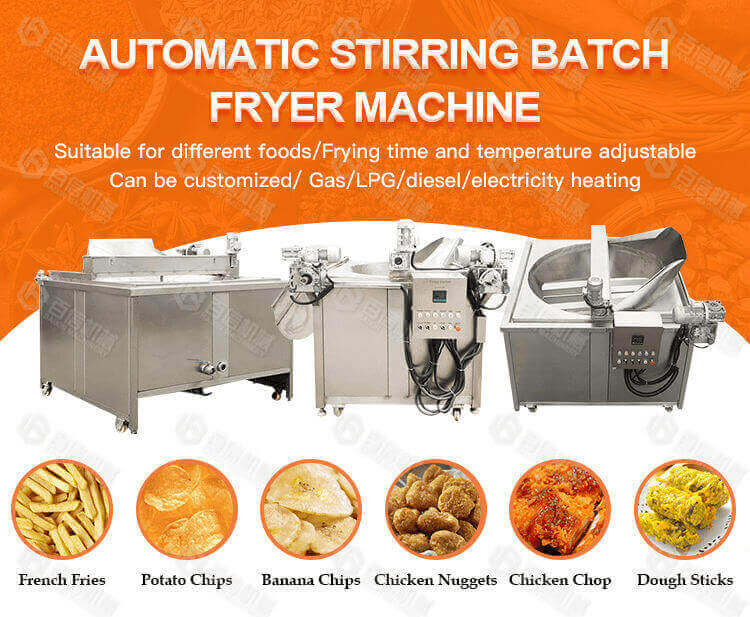

Introduction of automatic stirring batch fryer machine:

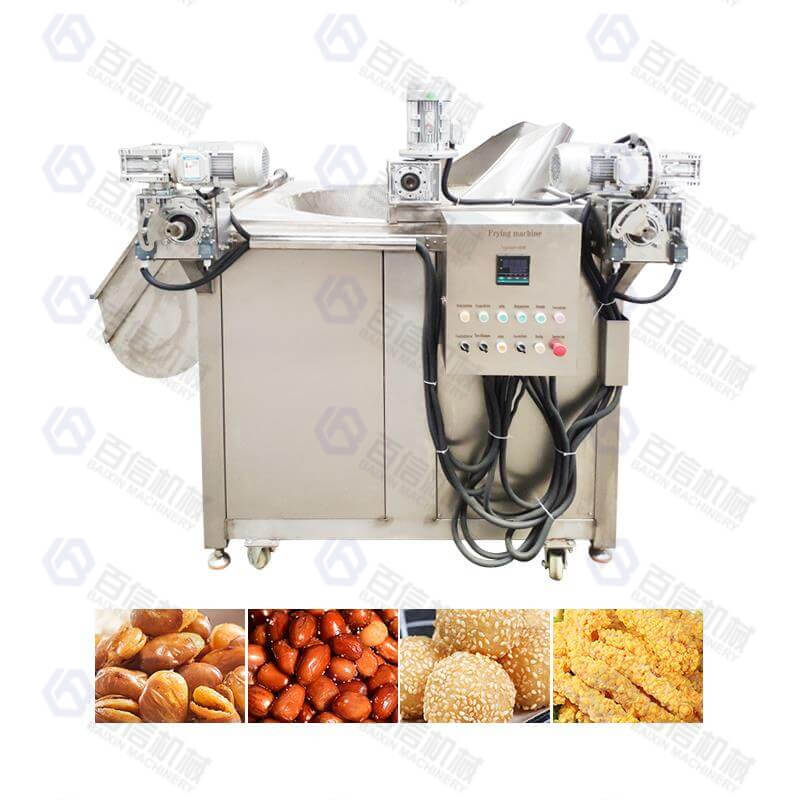

This small scale automatic stirring automatic discharging batch fryer machine is suitable for many kinds of products, like meat pie, chicken nuggets, potato chips, spring rolls, peanuts and other snacks.

Name	Automatic Stirring Batch Fryer Machine
Heating method	Electric or Gas
Material	SUS304
Diameter of frying tank	1000mm/1200mm/1500mm
Oil capacity	400L/600L/800L/1000L/1400L
Capacity	20-50kg/batch
Discharging material	Automatic
Mixing	Automatic
Feeding material	Automatic (optional)
Note	1.The basket is stainless steel holes; 2.The mixing speed is adjustable; 3.Working temperature is adjustable; 4.With automatic and manual working type.

Product components

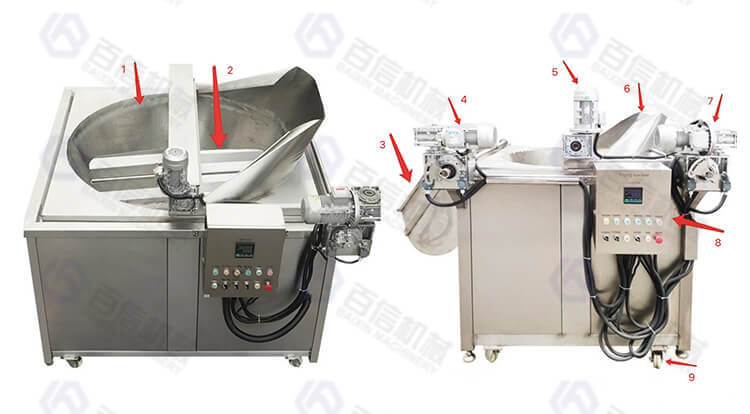

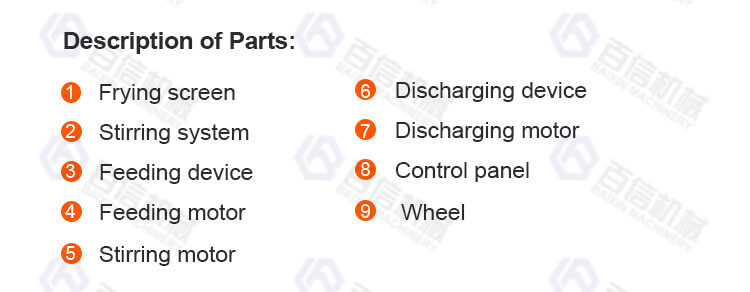

Components of automatic stirring batch fryer machine:

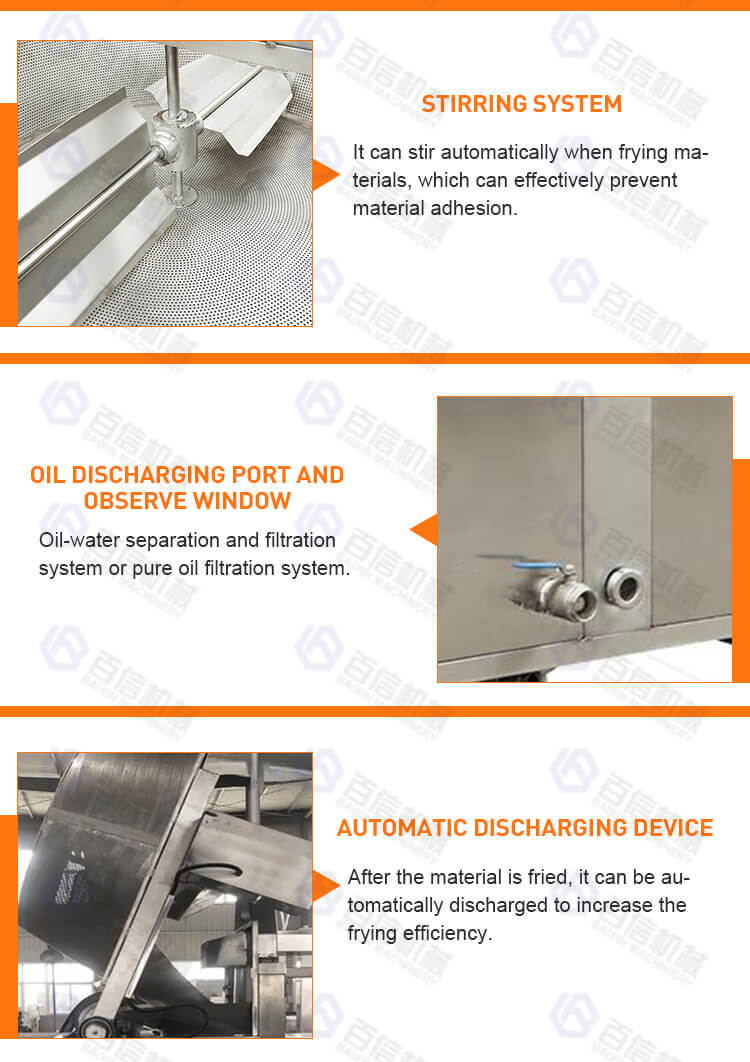

Features of automatic stirring batch fryer machine:

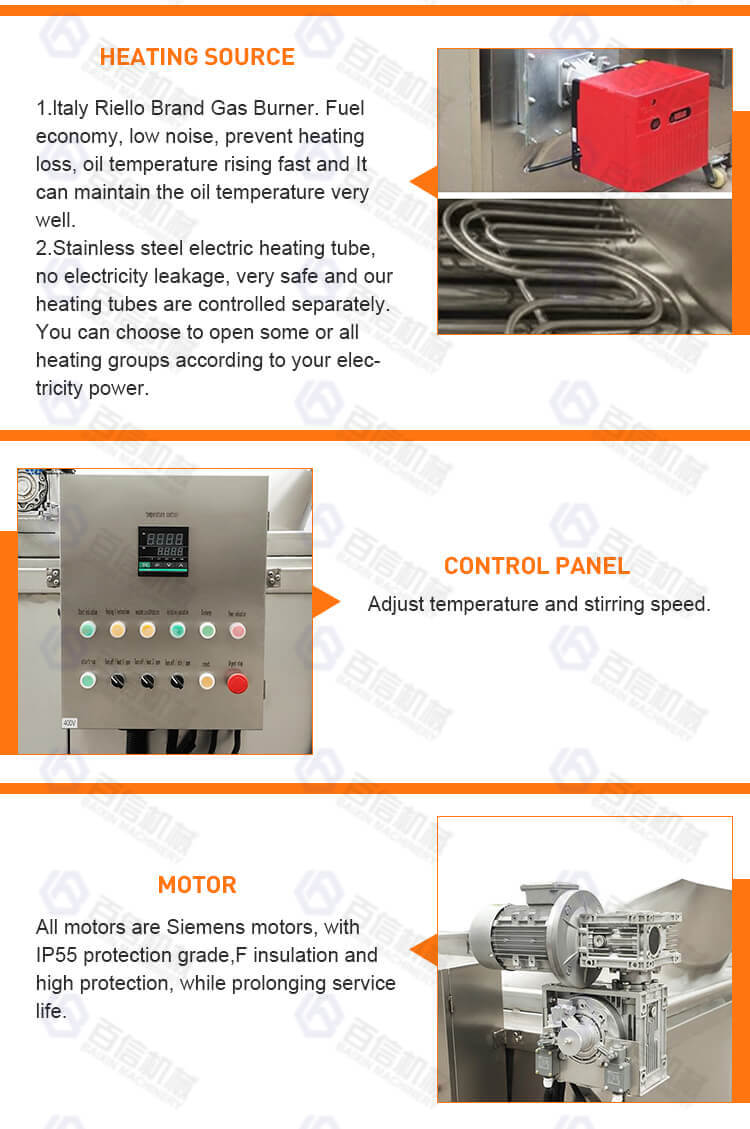

1	Gas or electricity as heating source
2	Oil-water separation and filtration system or pure oil filtration system
3	Automatic mixing, ensure products being uniformly fried and prevent them from compression and adhesion
4	Automatic discharging and optional automatic feeding through motor-driven manner to reduce labor intensity
5	Automatic temperature control: 0-300°C to be set at your will

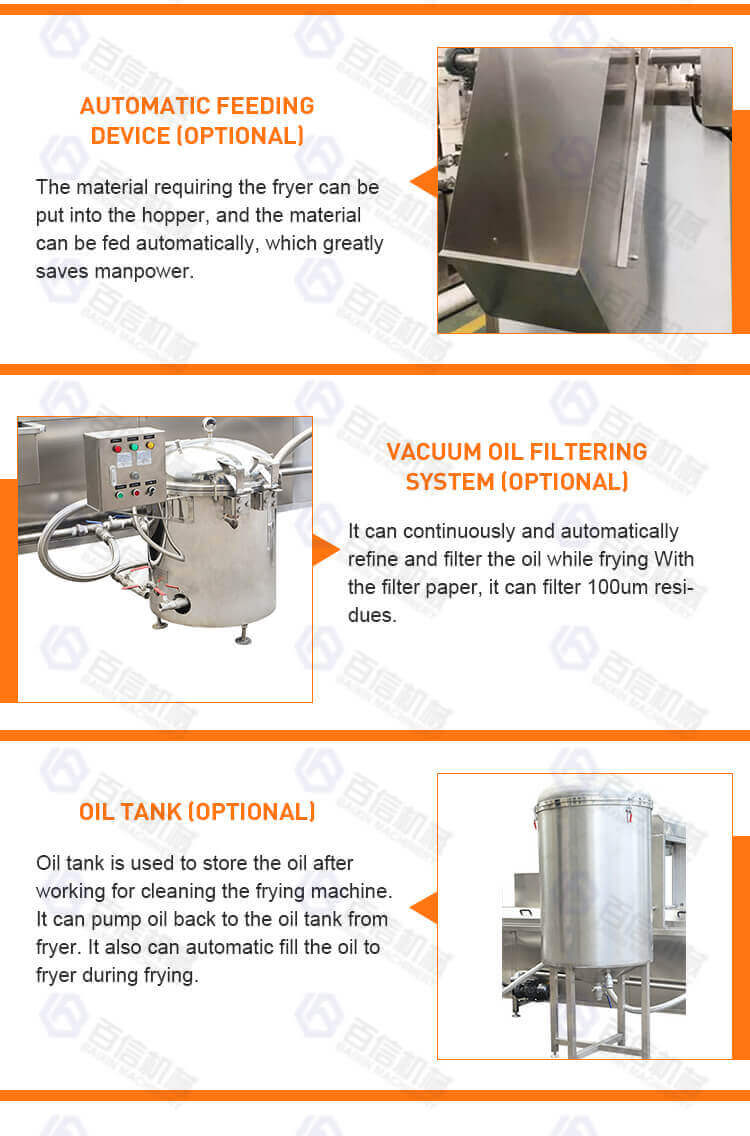

6	optional automatic feeding device to reduce labor intensity
7	optional slag scrapping device if the fried products produce much slag and residue
8	optional timer and alarm to remind you when the frying is finished

Technical parameters

Heating Source	Model	Diameter of Frying Tank	Oil Capacity	Machine Dimension	Power	Capacity
Electric	BX-1000	1000mm	400L	140012001600mm	36KW	20kg/batch
	BX-1200	1200mm	600L	160013001650mm	48KW	30kg/batch
	BX-1500	1500mm	1000L	190016001700mm	60KW	50kg/batch
LNG Gas	BX-1000	1000mm	800L	170015001700mm	100000kcals	20kg/batch
	BX-1200	1200mm	1000L	190017001750mm	200000kcals	30kg/batch
	BX-1500	1500mm	1400L	220019001800mm	200000kcals	50kg/batch

Application

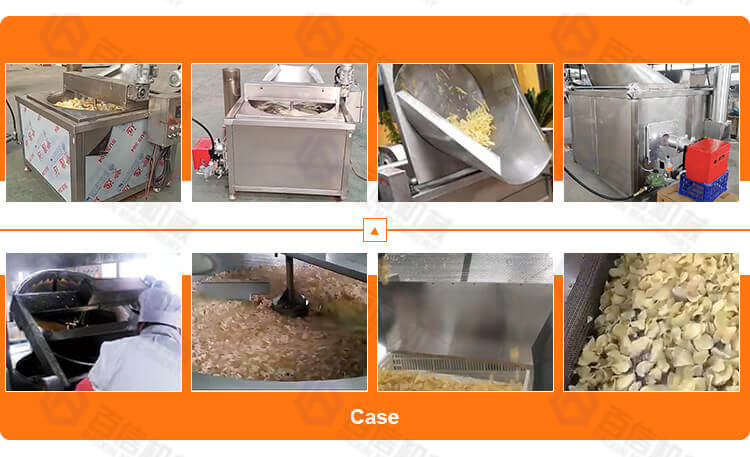

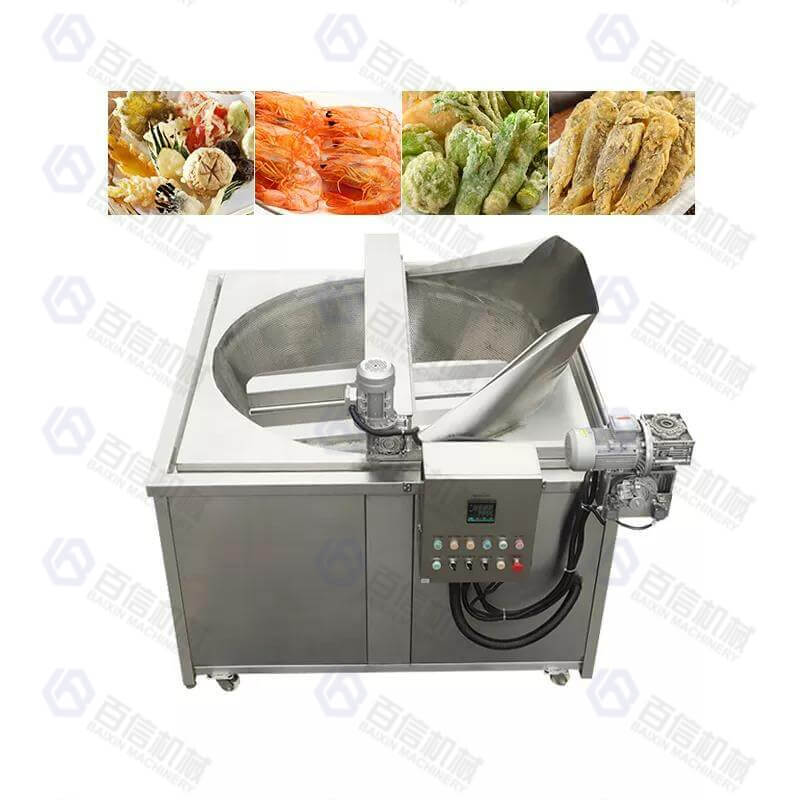

This batch fryer machine is suitable for various kinds of fried food like meat pie, chicken nuggets, potato chips, banana chips, spring rolls, peanuts and many other snacks.It is widely used in food industry.

This batch frying machine always works together with other machines like deoiling machine to combine one frying production line.

FAQ

Do you provide equipment operation training?

Yes. We can send professional engineers to the working site to guide the installation, adjustment, and operation training. All of our engineers have passports.

What about the Warranty?

We are committed to every food dryer machine before delivery through professional commissioning debugging to ensure that the machine is best for you. And solemnly promise you can machine warranty for one year, Long-term to provide an after-sale spare parts service cost price.

What is the delivery time?

For the regular equipment, the delivery will be 10~25 days. For customized drying production line will be further negotiated with us.

Can I be your agent?

Yes, if you want to become our distributor in your place, we are a pleasure that we share profits and cooperate.
