Home > Products > Multi-layer Mesh Belt Dryer > All-in-one Conveyor Mesh Belt Large Food Dehydrator
All-in-one Continuous Mesh Belt Dryer
All-in-one Continuous Mesh Belt Dryer 1
All-in-one Mesh Belt Dryer1
All-in-one Mesh Belt Dryer

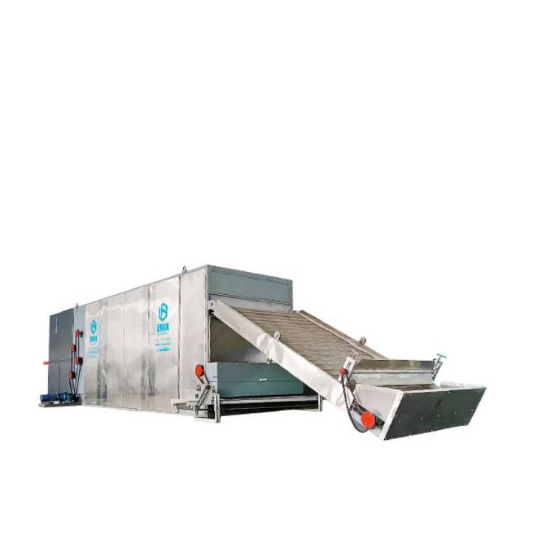

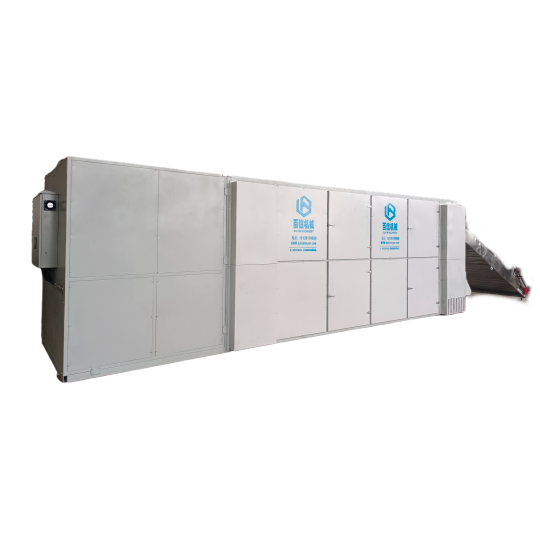

All-in-one Conveyor Mesh Belt Large Food Dehydrator

Product Type :
Continuous multi-layer mesh belt dryer
Output :
300-500kg/h
Drying Time :
0.5h-5h
Temperature
40-80℃
Power Input :
66.5KW
Heat Source :
Heat pump
Customization :
Can be customized
Applicable :
Vegetables/fruits/herbs/agriculture etc
Core Advantages :
Continuous automatic work/ large output/drying time short/without installation
Share:
pro_det_02
01
Food drying process

How to dry food :

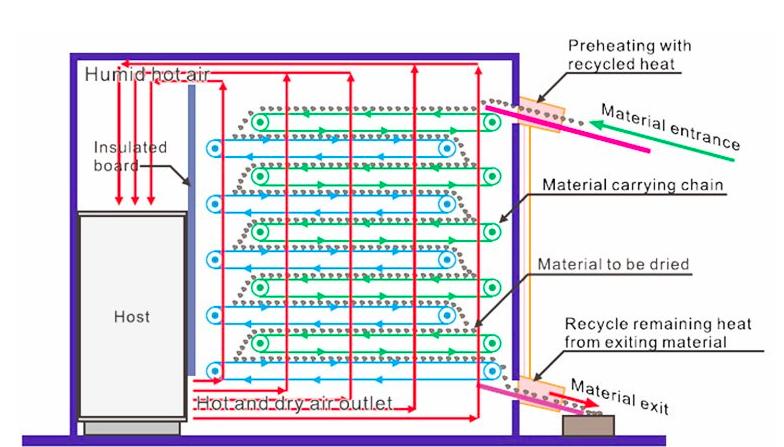

1:Place the material on the conveyor belt of the material dryer. The material is spread on the feeder by the homogenizing device on the conveyor belt.The stacking thickness of the material is 10-20CM.
2:After the material enters the material dryer, it runs in an “S” shape in the dryer. The transmission part of the material dryer adopts a variable-frequency speed-regulating motor, which can control the internal operation time of the drying according to the difference of the water content of the material.
3:The wind speed and wind pressure generated by the hot air blower make the hot air fully and evenly distributed inside the material dryer. The hot air naturally moves upward, passing through each layer of the mesh belt, plus the movement and rolling of the material, making the material fully in contact with the hot air, fully heat exchange, and improving the drying efficiency. The dried material will drain through the last layer.

02
Food dryer introduction

Working principle of food dryer

Food dryer machine is a kind of continuous production drying equipment. Its main working principle is to spread the material evenly in the network. The material is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the material. so as to achieve the purpose of drying.
The operation temperature is 40-80 degrees centigrade. And the dry cycle is 1-5 hours.

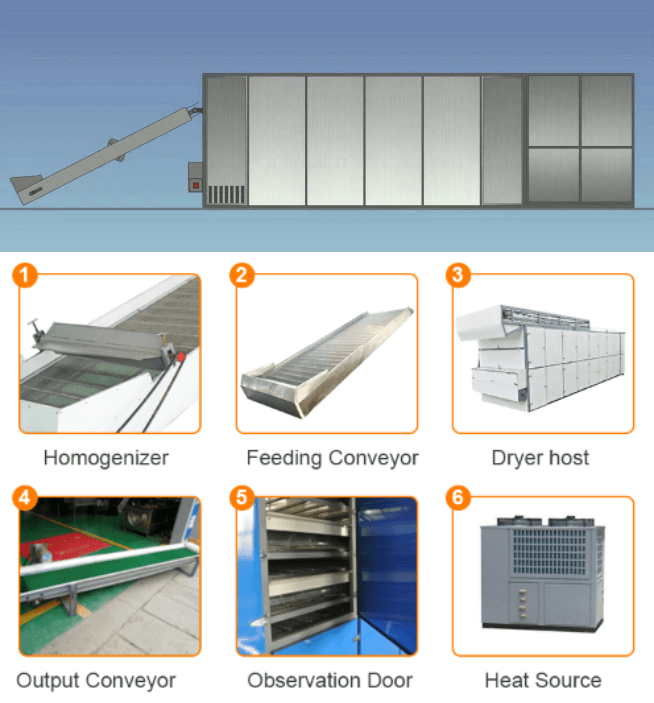

Components of food dryer

Advantages of food dryer

1. Middle and low temperature dehumidification drying
The Baixin customized conveyor mesh belt large material dehydrator drying fruits and vegetables in 50℃~80℃, articles do no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The Baixin customized conveyor mesh belt large material dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in a wholly sealed drying system, hygiene, and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to the external environment, which can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
A graphical touch control system, automatic intelligent control and demands no human duty after setting.

03
Technical parameters of food dryer
continuous mesh belt dryer list
Model operation temperature drying time thickness of the material the size of motor capacity heat source total power
BX-2*6M 40-120℃ 0.5-5h 50-200mm 6*2*2.5 200-400kg/h electricity 66.5kw
natural gas/propane 12.22kw
coal/wood chips 13.72kw
steam 11.22kw
BX-2*9M 9*2*2.5 500-800kg/h electricity 79.76kw
natural gas/propane 20.12kw
coal/wood chips 23.12kw
steam 16.62kw
BX-2*12M 12*2*2.5 1000-1500kg/h electricity 153.12kw
natural gas/propane 33.12kw
coal/wood chips 36.12kw
steam 25.62kw
The continuous drying machine can be equipped according to the user’s requirement and the production demands.
04
Application of food dryer

Baixin customized conveyor mesh belt large material dehydrator is an automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirements and the production demands. It is suitable for drying a very large variety of materials. Such as dehydrated vegetables, fruits, sea material, and so on.
Your product is not listed above? We are ready to meet any new challenge! Contact us for free product testing!

05
FAQ
Q
Now we plan to make the drying project, what should we do?
A
Firstly, we need to know the original moisture content of the material and after drying the final moisture content that you want to achieve. Secondly, please tell us what is your required capacity per hour or per day? Thirdly, what kind of fuel do you want to use? Coal, gas, electrical, or others. We can according to your answer recommend you the accurate drying model and design the matching heating system for your project.
Q
What kind of drying machine is suitable for me?
A
We offer three types of food dryer machines: multi-layer belt drying machine, heat pump drying machine, and microwave food drying machine. Generally speaking, the multi-layer belt drying machine is more suitable for large-scale food drying, heat pump drying machine tends to be easier to operate and frequently used in the small and medium drying process, and The microwave dryer has higher drying efficiency and sterilization function. Based on your production situation, you can choose the suitable one.
Q
Do you provide equipment operation training?
A
Yes. We can send professional engineers to the working site to guide the installation, adjustment, and operation training. All of our engineers have passports.
